Mexico has become an important manufacturing base for automotive systems, electronics, appliances, medical devices, and industrial equipment. For buyers who need stable quality and repeatable production, CNC machined aluminum housings are one of the most requested product groups because they combine low weight, corrosion resistance, accurate fit, and clean appearance.

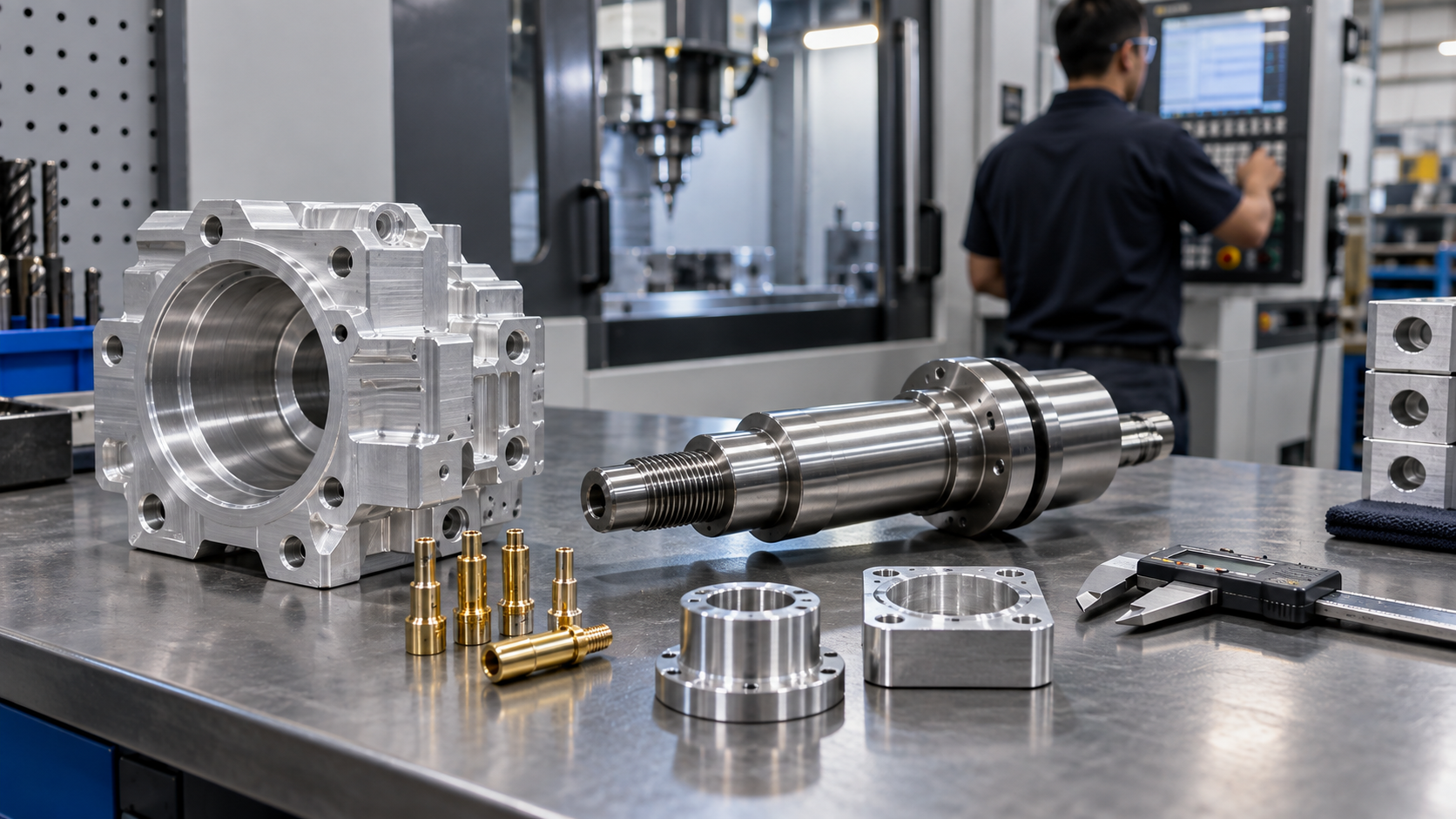

At Ancastings, aluminum housings can be produced from billet or extrusion stock according to customer drawings, 3D files, samples, or functional requirements. Typical parts include motor covers, sensor housings, control box enclosures, pump bodies, mounting frames, and precision machined covers.
Recommended Product Parameters
| Item | Recommended Specification |
|---|---|
| Common materials | Aluminum 6061-T6, 6082, 7075, 5052, ADC12 when casting blanks are required |
| Machining process | 3-axis milling, 4-axis milling, 5-axis machining, drilling, tapping, boring, chamfering |
| Typical tolerance | +/-0.01 mm for precision features; +/-0.05 mm for general dimensions |
| Surface roughness | Ra 0.8-3.2 um depending on finish requirement |
| Wall thickness | 2.0-8.0 mm typical; optimized by structural load and machining access |
| Thread options | M2-M16 metric threads, UNC/UNF threads, helicoil inserts, threaded bushings |
| Surface treatment | Clear anodizing, black anodizing, hard anodizing, powder coating, bead blasting, brushing |
| Inspection | Caliper, micrometer, height gauge, CMM, thread gauge, surface roughness tester |
Design Points for Reliable Assembly
For aluminum housings used in Mexico production lines, the most important design points are mounting flatness, thread strength, sealing surface quality, and repeatable hole position. Large pockets should use generous corner radii to improve tool life and reduce machining time. Thin walls should be supported with ribs or local bosses instead of making the entire part thicker.
If the housing needs gasket sealing, the gasket groove should include a controlled depth, clear corner radius, and stable surface roughness. If the part requires anodizing, dimension changes caused by coating thickness should be considered before final machining.
Typical Applications
- Automotive electronic control housings and mounting brackets
- Industrial sensor covers and machine vision camera housings
- Motor end covers, pump covers, and gearbox accessory bodies
- Electronics enclosures for assembly plants in Mexico
For export-focused CNC machining projects, a good aluminum housing is not only visually clean. It must hold tolerance after finishing, assemble smoothly with mating parts, and pass repeat inspection across batches.
