Fuel cells play a crucial role in the renewable energy sector as a clean and efficient energy conversion technology. The performance of the key fuel cell component – the metal bipolar plate – is directly responsible for the efficiency and reliability of the entire fuel cell system. Additionally, CNC machining, an advanced manufacturing technique, has proven advantageous for the production of fuel cell bipolar plates.
This article will delve into the application of CNC machining in the manufacturing of fuel cell bipolar plates, including the selection of materials and machining processes.
Functions of Bipolar Plates

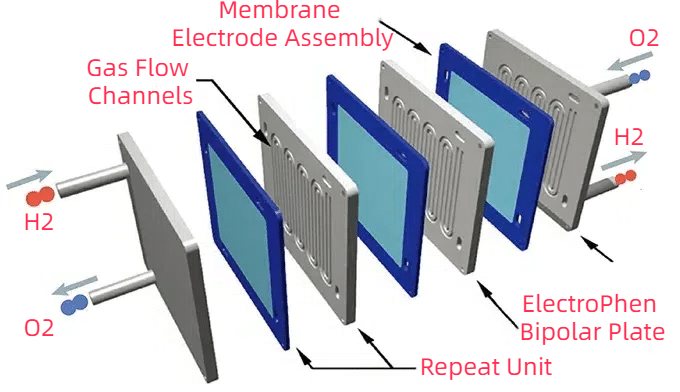

Bipolar plates serve to conduct current within the fuel cell stack, while also participating in the electrochemical reactions. Below are some functions of bipolar plate:
- Current Collection and Distribution: It can effectively collect and distribute current, ensuring uniform current distribution within the fuel cell stack.
- Gas and Coolant Channels: The plate features gas and coolant channels for supplying reactant gases and cooling the fuel cell stack.
- Structural Support: Also, it provides structural support to maintain the mechanical integrity of the fuel cell stack.
- Thermal Management: The good thermal conductivity allows bipolar plates to readily transfer and dissipate heat, thereby ensuring proper thermal management of the fuel cell stack.
- Corrosion Resistance: Appropriate selection of metal materials can ensure that the bipolar plates have excellent corrosion resistance in the electrochemical environment.

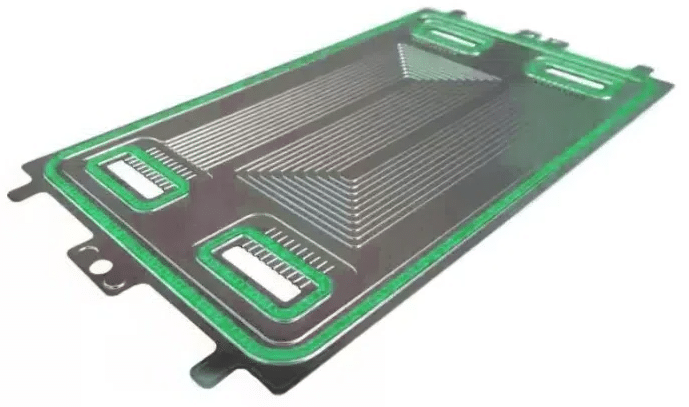

Materials of Bipolar Plates
There is a wide range of materials that can be employed in the fabrication of bipolar plates. Common materials of them include:
- Stainless steel: Good mechanical properties, corrosion resistance, and electrical conductivity. Common stainless steel grades include 304 and 316.
- Titanium Alloy: Excellent corrosion resistance, but higher cost. Common titanium alloy grades involve TA1, TA2, and more.
- Aluminum Alloy: Relatively low density and good electrical conductivity, but poorer corrosion resistance, requiring surface treatment. Common aluminum alloy grades are 6061 and 7075.
- Metal Composite Materials: Composed of a metal matrix and ceramic or carbon fiber reinforcements, combining the advantages of metals and composites.
In general, it calls for taking comprehensive consideration of factors such as cost, mechanical properties, electrical conductivity, and corrosion resistance when selecting materials to meet the specific requirements of the battery system.
Benefits of CNC Machining in Fuel Cell Bipolar Plate
CNC machining technology provides important support for the optimal manufacturing of fuel cell bipolar plates.
- High Precision: It can achieve high-precision dimensional control and surface finish, meeting the strict geometric requirements of fuel cell bipolar plates.
- Complex Structure: CNC machining can process complex channel structures and micro-structures, improving the fluid distribution and reaction activity of the bipolar plate.
- Material Adaptability: in addition, it can process various metal materials to meet the material requirements.
- Batch Production Capability: It possesses good batch production capability, which can meet the large-scale production needs of fuel cell industrialization.
- Flexibility and Repeatability: The technology can quickly adjust and modify the design, improving the iteration speed of fuel cell bipolar plates.
- Friendly-cost: Moreover, CNC machining can reduce manual operation, and improve production efficiency, thereby reducing the manufacturing cost of bipolar plates.
Applications of CNC Machining in Bipolar Plate
1. Flow Channel
The channel structure on the bipolar helps guide the flow of reaction gases and coolants. CNC machining can precisely control the size, shape, and position of the flow channels. This ensures that the channels can uniformly distribute the reaction gases, which in turn improves the performance of the bipolar plates. Furthermore, Precision machining can also achieve complex three-dimensional flow channel structures, from serpentine to branched flow channels.
2. Thin Sheet
This refers to the bipolar plate body, which is usually made of metal or carbon composite thin sheets. Through precise CNC machining, the thickness of the bipolar plates can be reduced to 0.1-0.3 mm, significantly reducing the weight of the stack. Besides, the technology can also maintain the flatness and dimensional accuracy of the ultra-thin bipolar plates.
3. Bipolar plate Integration
Bipolar plate integration involves the integration of flow channels, gas diffusion layers, catalyst layers, and other components into a single bipolar plate structure, achieving integrated manufacturing. However, CNC machining can achieve precise docking of these parts, ensuring the overall performance of the battery stack.
CNC Techniques for Metal Bipolar Plates
CNC machining is a common process for metal bipolar plates, mainly including the following techniques:
- CNC Milling: Milling machines are able to manufacture the channels, gas diffusion layers, and other structures of the bipolar plates precisely.
- CNC Drilling: Holes are drilled on the bipolar plates to allow the flow of gases and liquids. CNC drilling can precisely control the hole diameter and position, improving the machining efficiency.
- Waterjet Cutting: Using high-pressure water jet cutting, complex shapes can be machined on the bipolar plates. In addition, waterjet cutting has no heat-affected zone, making it suitable for thin plate materials.
- Laser Cutting: Laser cutting can quickly and accurately process the outer shape and internal structures of the bipolar plates. The laser machine has a small heat-affected zone, which is suitable for machining various metal materials.
- Electrical Discharge Machining (EDM): Utilizing the principle of electrical discharge, precise channel structures can be machined on the bipolar plates. It is suitable for machining hard alloy materials that are difficult to process.
In summary, CNC machining technologies provide a variety of efficient and flexible solutions for the manufacturing of metal bipolar plates.
Custom Fuel Cell Metal Plates at Ancastings Precision
Ancastings Precision, a CNC machining company, provides customized fuel cell metal plate services, including material selection, surface treatment, structural design, and advanced manufacturing processes. We offer stainless steel, titanium alloy, aluminum alloy, and other metal plates based on customer requirements, and can apply corrosion-resistant coatings. Additionally, they can customize the gas and coolant channel structures to optimize performance. Leveraging our professional expertise and extensive experience in CNC machining, we deliver high-quality customized fuel cell metal plate solutions to clients. If you want to customize your fuel cell bipolar plate, please feel free to contact our engineers or get an instant quote.
