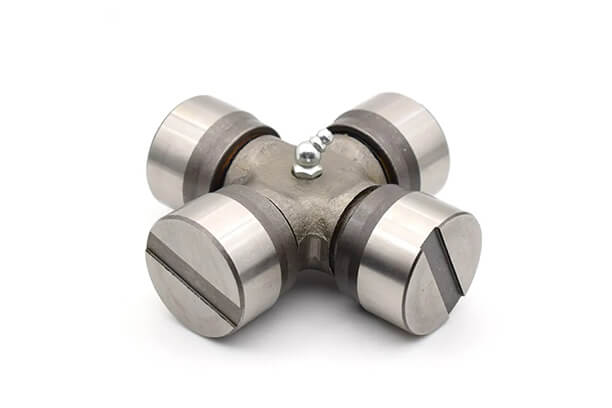

Cross bearing universal joints made of stainless steel are high-precision universal joints used in sanitary or corrosive environments. They retain minimal backlash over extended periods and they feature roller bearings to lower friction and extend lifespan in continuous operations and high RPM.
| Features | Specifications |
| Outside Diameter | 0.75″-2.50″ [19mm-63mm] |
| Operating Speed | up to 6000 RPM |
| Operating Angle | up to 45° |
| Operating Torque | 28-1,528 Lb-In [3-173 N-m] |
| Maximum Torque | 147-5,640 Lb-In [17-637 N-m] |
| Material for Yokes | precision machined AISI 303 Stainless [DIN 1.4305] |
| Material for Cross | high-grade alloy steel |
| Bore configurations | plain bore, hex- and square bore, keyway |
Custom Double Universal Joint or Telescopic Drive Shaft are available as you fill out an RFQ.
Torque Values by Outside Diameter
| Nominal OD (in) | Max. Operating Torque Lb-in [N-m] | Ultimate Torque Lb-in [N-m] |
| 3/4″ | 30 [3.4] at 10° & 250 RPM; and 18 [2.0] at 45° & 250 RPM | n/a |
| 1″ | 121 [13.7] at 10° & 250 RPM; and 74 [8.4] at 45° & 250 RPM | n/a |
| 1-1/4″ | 260 [29.4] at 10° 250 RPM; and 159 [18.0] at 45°, 250 RPM | n/a |
| 1-1/2″ | 572 [64.6] at 10° & 250 RPM ; and 350 [39.5] at 45° & 250 RPM | n/a |
| 2″ | 1269 [143.4 ] at 10° & 250 RPM; and 776 [87.7] at 45° & 250 RPM | n/a |
