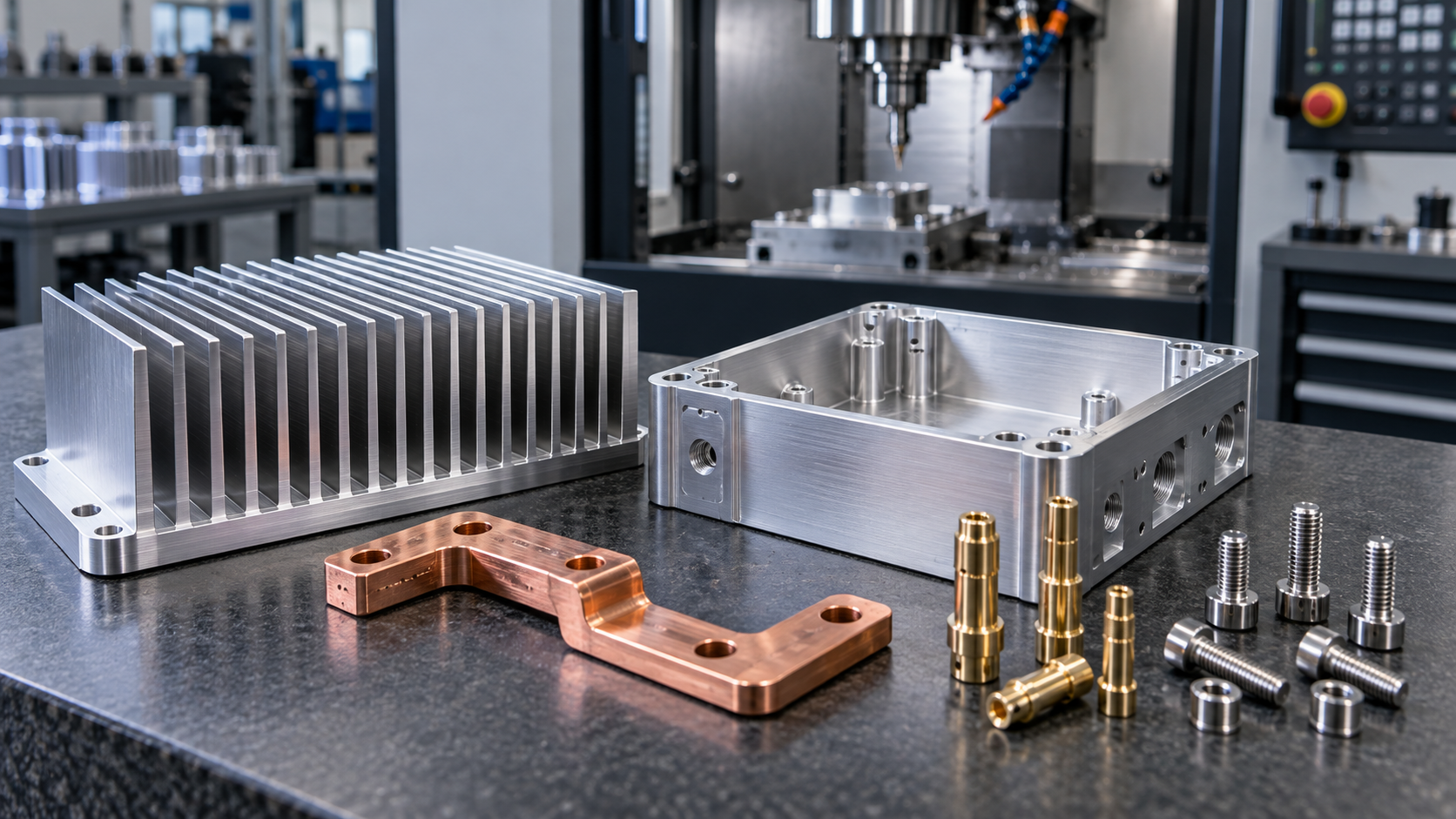

Electronics manufacturing in Mexico requires metal parts that are accurate, clean, conductive when needed, and stable during assembly. CNC machined heat sinks, aluminum enclosures, copper busbars, brass connector pins, and stainless fasteners are commonly used in power electronics, industrial controls, communication equipment, EV systems, and test fixtures.
These components often combine electrical performance, thermal performance, and mechanical fit. A small mistake in flatness, plating thickness, hole position, or burr control can create problems during assembly or field use.
Detailed Product Parameters
| Product | Material Options | Critical Parameters | Typical Finish |
|---|---|---|---|
| CNC heat sink | Aluminum 6061/6063/6082 | Fin thickness, base flatness, mounting hole position, thermal contact surface | Clear anodizing, black anodizing, nickel plating |
| Electronics enclosure | Aluminum 6061, 5052, stainless steel | Wall thickness, gasket groove, threaded holes, cover fit, surface quality | Anodizing, powder coating, brushing, bead blasting |
| Copper busbar | C1100, C101, brass, plated copper | Conductive area, bend radius, hole position, surface oxidation control | Tin plating, nickel plating, silver plating where required |
| Connector pin | Brass C360, phosphor bronze, stainless steel | Diameter tolerance, chamfer, thread, concentricity, contact surface | Gold plating, nickel plating, passivation |
| Precision fastener | Stainless steel, alloy steel, aluminum | Thread fit, head geometry, tensile strength, burr-free edges | Passivation, black oxide, zinc plating |
Manufacturing Notes
Heat sinks should be designed with tool access in mind. Very thin fins improve thermal area but can raise machining cost and risk vibration marks. For enclosures, internal corner radii should match available cutters. For copper busbars, burr control and plating adhesion are just as important as dimensional accuracy.
For connector parts, a consistent chamfer helps automatic assembly. If the part will be plated, both the machined dimension and final plated dimension should be specified so the finished component meets the functional requirement.
Inspection and Documentation
- Dimensional inspection report for critical features
- Material certificate when required
- Surface finish and plating thickness checks
- Packaging plan to prevent scratches, oxidation, and thread damage
For Mexico electronics projects, custom CNC parts should be treated as functional components, not simple metal pieces. The best supplier will review the drawing, propose manufacturability improvements, and protect both dimensional performance and cosmetic quality.
