Quick Release Ball Lock Pin – Heavy Duty Detent Pin – Ring Handle

Heavy Duty Detent Quick-Release Pins are superior shoulder-style alignment pins designed for applications that do not necessitate the positive locking ball attribute. A shoulder ensures that a section of these pins remains outside the hole, facilitating convenient gripping of the ring. Their heavy-duty spring and (2) spring-loaded stainless steel locking balls deliver substantial pull-out force.

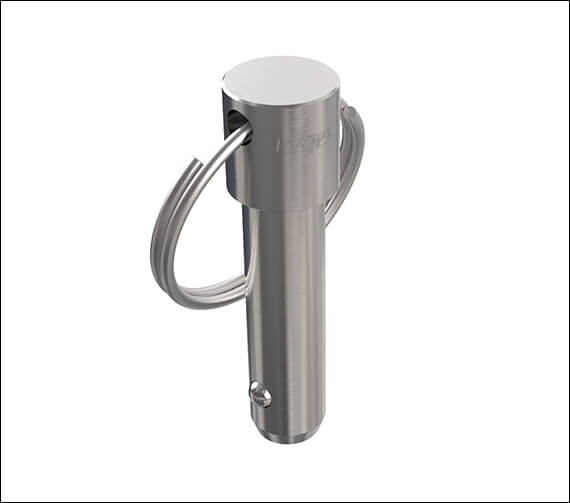

  • Quick-Release Pin-Heavy-Duty Detent Pin

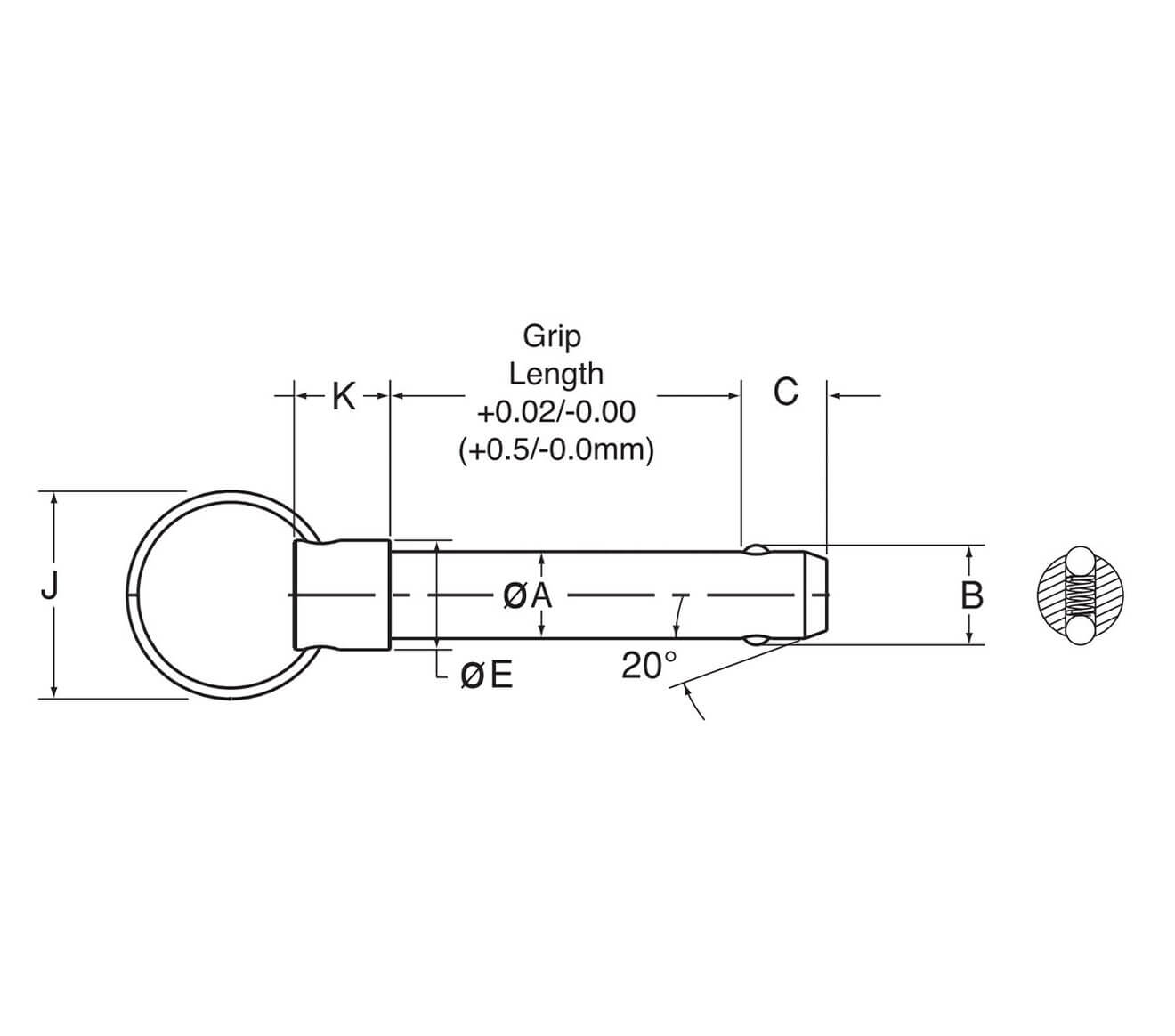

  • Heavy duty detent pin-drawing

    • Material:

    17-4 PH Heat Treated Stainless Steel

    Note:

    The head comes equipped with a hole and a split ring made of stainless steel, allowing for easy attachment of an optional lanyard.

    It is possible to request the inclusion of (4) locking balls to enhance the tensile strength of the locking element.

    Upon request, special materials, grip lengths, diameters, and other customizations are available.

    Heavy Duty Detent Quick-Release Pin Specifications – Inch

    Pin Diameter Grip Length B MIN (In) C +0.000/-0.060 (In) E ± 0.015 (In) J (In) K (In) Double Shear Strength-lbs. 17-4 Ph S.S. Double Shear Strength 300 Series S.S. (lbs) Pull Out Force MIN (lbs) Recommended Hold Diameter MAX (In) Recommended Hole Diameter MIN (In)
    3/16 In 0.50 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 0.75 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 1.00 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 1.25 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 1.50 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 1.75 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 2.00 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    3/16 In 2.50 In 0.200 0.250 0.375 1.187 0.50 5262 2530 2 to 7 0.1940 0.1900
    1/4 In 0.50 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 0.75 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 1.00 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 1.25 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 1.50 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 1.75 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 2.00 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 2.50 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 3.00 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    1/4 In 4.00 In 0.280 0.344 0.375 1.187 0.50 9537 4500 2 to 7 0.2540 0.2500
    5/16 In 0.50 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 0.75 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 1.00 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 1.25 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 1.50 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 1.75 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 2.00 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 2.50 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 3.00 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    5/16 In 4.00 In 0.360 0.359 0.438 1.187 0.50 15075 7100 2 to 7 0.3165 0.3125
    3/8 In 0.50 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 0.75 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 1.00 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 1.25 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 1.50 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 1.75 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 2.00 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 2.50 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 3.00 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 4.00 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    3/8 In 5.00 In 0.430 0.390 0.500 1.187 0.50 22050 10300 6 to 14 0.3790 0.3750
    1/2 In 0.50 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 0.75 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 1.00 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 1.25 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 1.50 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 1.75 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 2.00 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 2.50 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 3.00 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 4.00 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    1/2 In 5.00 In 0.570 0.516 0.625 1.187 0.55 39263 18400 10 to 22 0.5050 0.500
    5/8 In 0.50 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 0.75 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 1.00 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 1.25 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 1.50 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 1.75 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 2.00 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 2.50 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 3.00 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 4.00 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    5/8 In 5.00 In 0.720 0.672 0.750 1.687 0.55 61736 28900 15 to 30 0.6300 0.6250
    3/4 In 0.50 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 0.75 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 1.00 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 1.25 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 1.50 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 1.75 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 2.00 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 2.50 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 3.00 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 4.00 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500
    3/4 In 5.00 In 0.860 0.750 0.875 1.687 0.55 88442 41800 15 to 30 0.7570 0.7500

    Other Articles You May Be Interested in:

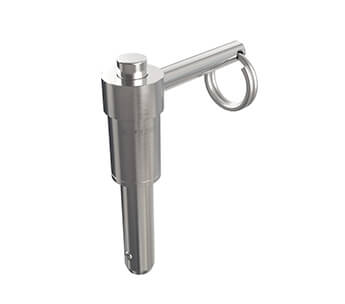

    Heavy-Duty L-Handle Quick-Release Pin

    Quick Release Ball Lock Pin – Heavy Duty L-Handle

    By Ancastings Precision
    Posted in Quick Release Pin

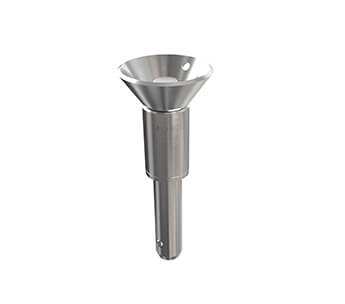

    Recessed-Button Handle Quick-Release Pin

    Quick Release Ball Lock Pin – Recessed-Button Handle

    By Ancastings Precision
    Posted in Quick Release Pin

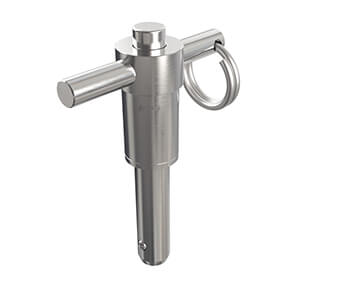

    Heavy Duty T-Handle Quick-Release Pin
