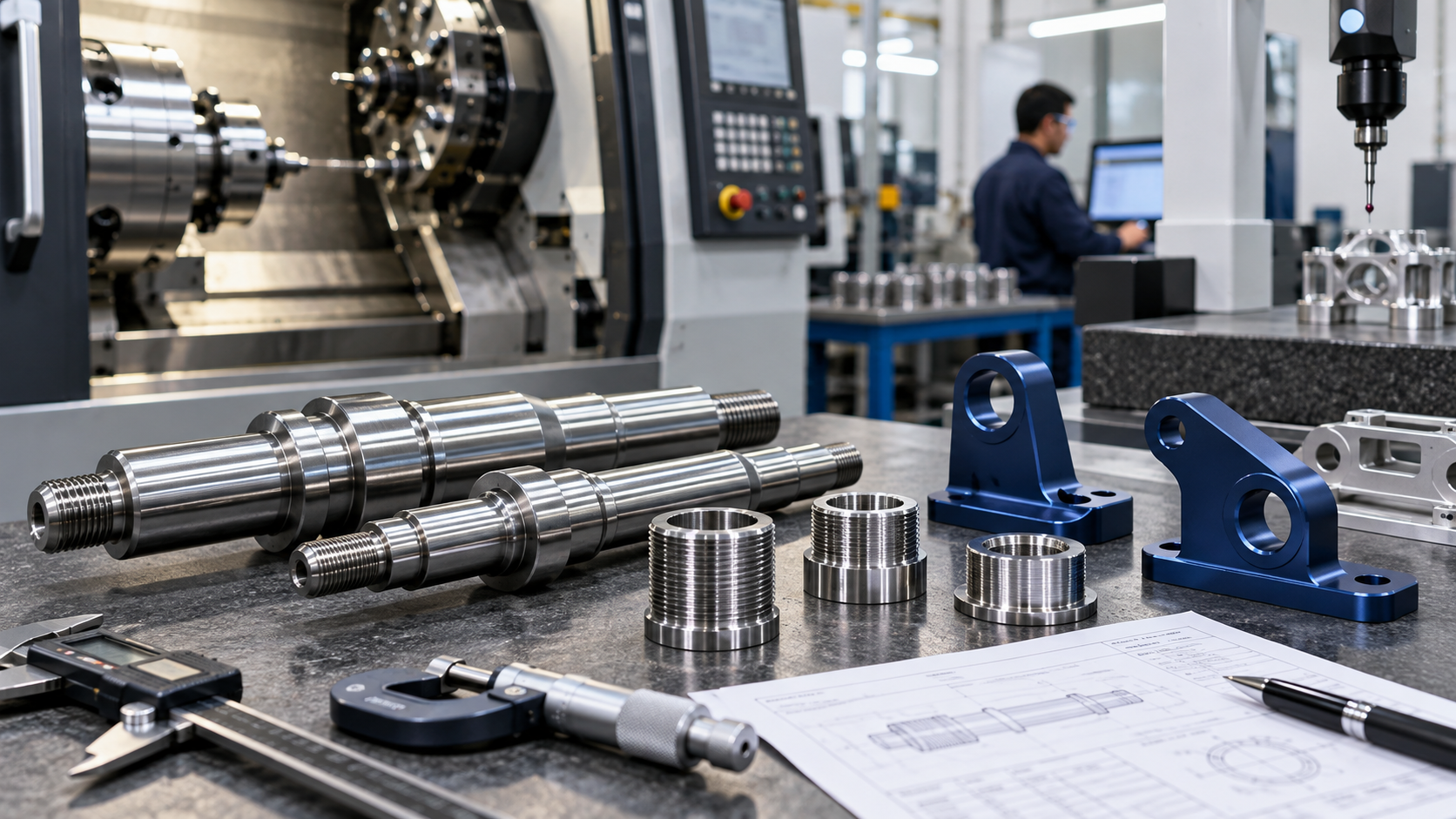

CNC turned shafts and bushings are widely used in Mexico automotive, automation, agricultural equipment, and industrial machinery supply chains. These parts look simple, but they often control motion accuracy, assembly clearance, torque transmission, and service life.
Ancastings can manufacture precision turned parts from stainless steel, carbon steel, alloy steel, brass, copper, and engineering plastics. Production can include turning, milling flats, cross drilling, threading, grinding, heat treatment, and final surface finishing.
Product Parameter Reference
| Parameter | Available Range / Recommendation |
|---|---|
| Part types | Shafts, pins, sleeves, bushings, spacers, threaded adapters, valve bodies, collars |
| Diameter range | 3-180 mm depending on material and geometry |
| Length range | 5-600 mm typical; longer parts evaluated by straightness requirement |
| Materials | 304/316 stainless steel, 4140/42CrMo, 1045/C45, brass C360, copper, POM, PEEK |
| Precision tolerance | +/-0.005 mm possible on critical turned diameters; +/-0.02 mm typical |
| Concentricity | 0.01-0.03 mm available for functional diameters after process review |
| Threading | Metric, UNC, UNF, NPT; internal and external threads |
| Heat treatment | Quenching, tempering, nitriding, induction hardening where required |
| Finish | Black oxide, zinc plating, nickel plating, passivation, polishing, grinding |
Key Quality Controls
For turned parts, quality control should focus on functional diameters, shoulder position, runout, thread fit, burr removal, and material traceability. Automotive-related parts may also require PPAP-style documentation, first article inspection, and batch traceability.
When a shaft has multiple bearing seats, all critical diameters should be machined with a stable datum strategy. For bushings, inner diameter, outer diameter, roundness, and edge chamfer must be controlled together to avoid assembly damage.
Common Mexico Market Use Cases
- Automotive seat systems, brackets, hinges, and motion mechanisms
- Industrial robots, conveyors, and automation equipment
- Pump and valve components for fluid control systems
- Agricultural equipment shafts, spacers, and threaded connectors
For buyers sourcing CNC turned parts for Mexico assembly, the best result comes from sharing drawings, expected annual volume, mating part information, and inspection priorities at the quotation stage.
