Why Tool Marks Occur on CNC Parts and How to Remove Them Successfully

CNC machined parts often develop tool marks and it is a common problem in precision manufacturing. These marks can reduce both the visual and functional performance of the part. Manufacturers must know the causes, removal methods, and ways to prevent tool marks in order to produce high quality products.

Also See: What is CNC Precision Machining

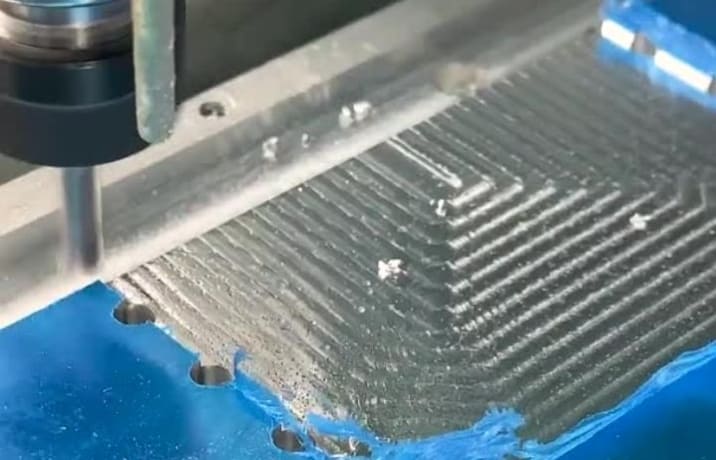

Understanding the Causes of Tool Marks

1. Tool Wear and Tear

• Flank Wear: The tool’s flank face wears off as it rubs against the workpiece. This friction increases cutting forces and results in a rougher surface.
• Crater Wear: High temperatures and chemical reactions with the workpiece material damage the tool’s rake face. This type of wear causes surface flaws and dimensional errors.
• Notch Wear: Chips welding to the tool at depth of cut line causes notch wear. This creates localized tool damage and weakens the tool.
• Impact on Surface Finish: These wear types reduce the tool’s cutting performance; as a result, surface finishes become inconsistent and the risk of tool failure increases.

2. Machine Tool Stability

• Vibrations & Chatter: When machining, vibrations can make the tool move in unwanted ways. These oscillations often leave surface defects like tool marks. To reduce these problems use rigid machines, choose the right tools and set up the machine properly.
• Spindle & Fixture Rigidity: If fixtures or spindles are weak or worn out they can cause inaccuracies. These issues affect the surface finish of the part. Keeping up with regular maintenance and choosing strong high quality fixtures help maintain stability. This not only reduces vibrations but increases machining precision as well.

3. Cutting Parameters

• Feed, Speed and Depth of Cut: Setting these values wrong can accelerate tool wear, cause vibrations and harm surface quality. For example using a feed rate which is too high can make the tool deflect and leave marks on the workpiece.
• Optimal Parameter Selection: Choice of right parameters for the material and tool is necessary. CNC simulation software helps to find the best settings for the job.

4. Workpiece Clamping

• Uneven Clamping Forces: If clamping pressure is not even, the workpiece may move or deform while being machined. Moreover tool marks are more likely to appear especially on delicate or thin materials.
• Fixture Design: A good fixture applies clamping forces evenly on the part. It spreads the pressure and stops movement and deformation. A stable workpiece means a more consistent and better surface finish.

5. Toolpath Strategies

• Climb vs Conventional Milling: Climb milling lets the tool engage the material more smoothly. This reduces tool wear and the risk of tool marks. It also gives a better finish as compared to conventional milling.
• Step‐over Distances: Smaller step‐over distances during finishing passes give a smoother surface. This toolpath reduces scalloping and makes tool marks less visible. This way it assures CNC parts with a better finish.

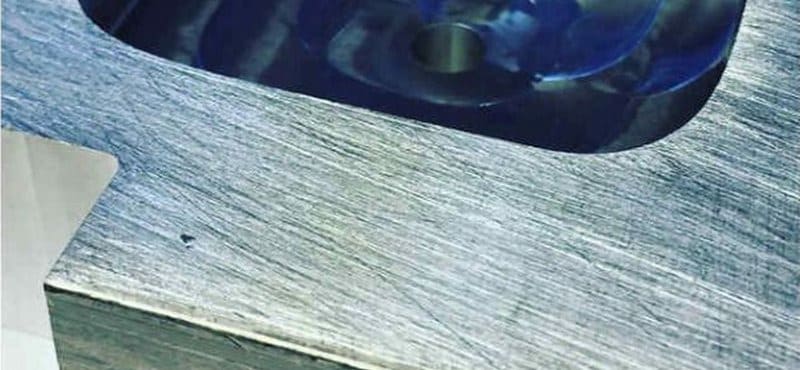

Methods for Removing Tool Marks

1. Mechanical Polishing

• Techniques: To remove tool marks, use abrasive materials like sandpaper, buffing wheels or polishing stones. These tools give a consistent and smooth surface finish.
• Materials: Choose abrasives according to the workpiece material. Fine grit abrasives are suitable for softer materials. On the other hand, aggressive abrasives are needed for harder materials.
• Considerations: Keep pressure and motion steady & consistent while polishing; because uneven pressure can create new tool marks. Thus a controlled and even approach is needed to give a uniform finish.

2. Chemical Smoothing

• Process: Apply specific chemicals to the surface to remove minor imperfections. Chemicals etch the surface by dissolving a thin layer which smooths out tool marks.
• Materials: Make sure the chosen chemicals are compatible with the workpiece material. Using the wrong chemical can damage or react with the material. For example use solvents or acids which are suitable for certain plastics or metals.
• Advantages: Chemical smoothing works well for complicated parts. It gives a uniform finish and preserves the details, especially where mechanical polishing is difficult.

3. Thermal Methods

• Vapor Blasting: This method combines abrasive media with water vapors to clean and smooth surfaces. It removes tool marks effectively and is gentle enough for delicate parts that can’t withstand harsher treatments.
• Heat Treatment: By carefully heating and cooling the material, you can relieve internal stresses and improve surface quality. This process reduces surface imperfections and improves the part’s integrity.

4. XEBEC Brushes

XEBEC brushes use advanced abrasive materials to give ultra-fine finishes. These brushes remove tool marks and imperfections even on parts with tight tolerances. This results in a better surface.

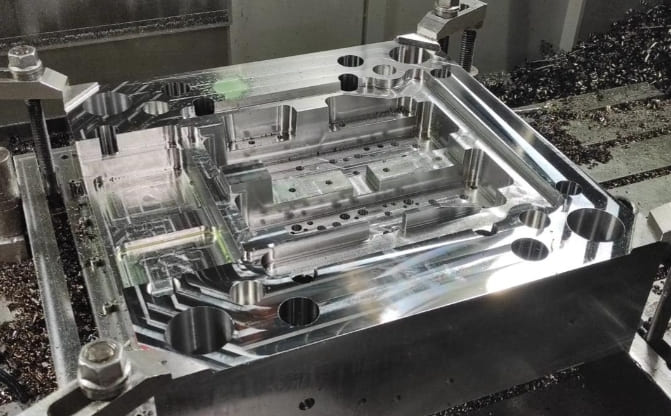

Preventive Measures to Minimize Tool Marks

Tool Selection and Maintenance

• Regular Inspection: Regular tool inspection is necessary to prevent tool marks from forming. By inspecting tools often, you can detect problems early. This keeps machining quality high and tools last longer.
• Proper Storage: Tools must be stored in a way that prevents corrosion and damage. Storing them in dry controlled areas stops wear and rust. This preserves cutting performance, reduces the need for frequent replacements and also minimizes the risk of surface defects on CNC parts.

Improving Machine Tool Stability

• Regular Calibration: Calibrating CNC machines on a regular basis keeps precision high and prevents tool marks. When the machine is within tolerance levels, part quality and consistency improve.
• Upgrading Components: Swapping out worn or old parts (bearings, guides, spindles) can improve machine performance. This prevents machining inaccuracies, reduces vibration and smooths out the operation. As a result tool marks become less likely and surface finishes improve.

Optimizing Cutting Parameters

• Material Specific Settings: Cutting parameters must match the material’s hardness and machinability. For example harder materials need slower feed rates and lower cutting speeds. These settings avoid too much tool wear and surface defects.
• Monitoring Tools: Real time sensors or monitoring systems let you catch problems during machining. These systems can detect vibrations, tool wear or changes in cutting parameters. They also give you early warnings therefore you can make quick adjustments and prevent tool marks or surface defects.

Workpiece Clamping Improvement

• Fixture Design: A good fixture design holds the workpiece firmly in place without distorting it. This reduces the risk of tool marks. Moreover consistent positioning and limited movement during machining are easier to achieve with a good fixture design.
• Monitoring Systems: Monitoring systems track clamping and alignment in real time. If problems occur, these systems alert you right away. Therefore in‐time corrections prevent the development of tool marks from shifting or poor clamping and the part stays stable during machining.

Refining Toolpath Strategies

• Simulation Software: Simulation software helps to create the best toolpaths and reduces unnecessary tool movements. By planning the most efficient path, the risk of surface defects and tool marks drops.
• Adaptive Strategies: Adaptive machining changes cutting parameters in real time using feedback from sensors or the process itself. These adjustments keep cutting conditions optimal. This reduces the risk of tool marks and maintains consistent surface quality throughout the operation.

To Sum Up

Tool marks on CNC parts depend on tool wear, cutting parameters, machine stability and how the workpiece is clamped. Manufacturers can improve precision and product quality by identifying these causes, using the right removal techniques as well as taking preventive steps too.
